MODEL C2® Plus Feeder for Broilers
The Broiler Feeder that Promotes Better Feeder Conversion
Extended Fin 1/2-inch (13-mm) longer Fins
Pan Depth 3 inches (76 mm), Window Only
Shallow Pan, Extended Fins Available
Pan Depth 2-1/2 inches (64 mm), Window or Non-Window
Original Pan, Extended Fins Not Available
Pan Depth 3 inches (76 mm), Window or Non-Window
Gets Birds Off to a Good Start from Day One
- Chick-friendly 14-spoke grill design lets birds exit pans easily.
- Shallow pan option reduces the need for feed trays and extra labor when starting birds.
- Optional feed windows fill pans high with feed to attract chicks.
- All-plastic construction with ultraviolet protection and reinforced eating and cone wear areas.
- Extended fin model helps ensure feed delivery by improving feed flow for harder flowing feed.
Keeps Birds Growing with Top Feed Conversion
- Feed-saving features include Chore-Time’s “V”-shaped pan bottom design, double pan lip and anti-rake fins.
- Extended fin model features 1/2-inch (13-mm) longer anti-rake fins to keep the cone off the bottom of the pan – permits more feed in pan when windows are closed with pan on the floor.
- Easy to adjust for flooding or a lower feed level as birds grow.
Other Feeder Features
- 1/3 or 1/2 HP 348 RPM power unit.
- 230 volt 50/60 Hz 1 or 3 phase power.
- Removable top option and slide shut-off available for all models.
Photos & Videos
Photos:
Literature
Manuals
Specifications
White Papers
Ghid pentru sistemele de furajare Chore-Time® pentru puii de carne
(CT-2613-RO/202201)
Modèle C2® PLUS Mangeoires pour poulets de chair
(CT-2430-FR/202408)

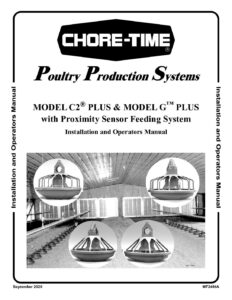

MF2495B MODEL C2® PLUS & MODEL G™ PLUS wtih Proximity Sensor Feeding System Install & Operate
July 2023
MF2424B MODEL C2® PLUS and MODEL G™ PLUS with Electronics Sensor (ES) Feeding Systems Install & Operate
Jan 2014
MF1660B MODEL C2® Plus and MODEL G™ Plus Feeding System Operators Manual
Aug 2004
MF2496A C2® PLUS End Control Proximity Sensor Retro-Fit Kit Installation Instruction
Oct 2020
MF2497A C2® PLUS Mid-line Proximity Sensor Retro-Fit Kit Installation Instruction
Oct 2020
Model C2® Plus Poultry Feeder Specifications
